Watershed simulation¶
How much of the rain becomes streamflow, how much the vegetation returns to the air, and how much soil the runoff carries away? A watershed model answers it day by day, from the terrain, the land use, the soils and the weather. The one in Landschaft is the core of SWAT+ (the Soil and Water Assessment Tool of USDA-ARS and Texas A&M AgriLife), ported to C++: for the part of SWAT+ it covers, it gives SWAT+'s own results, value for value, which is checked against SWAT+ itself on official examples and on projects made here.
You will learn to:
- divide a watershed into subbasins, channels and hydrologic response units (HRUs) from a DEM, a land use map and a soil map;
- write the weather a model needs, with the weather generator for the gaps;
- turn both into a SWAT+ project, which also runs in SWAT+ itself;
- simulate it and read its water balance, streamflow and soil loss;
- choose the cover factor of the erosion equation;
- compare a land use scenario with today's.
Everything lives in ls.hydro.swat.
The landscape¶
example_landscape gathers the inputs of a small model from the example data:
the Oregon DEM projected to 30 m cells, a land use map from the NDVI (forest
above 0.55, pasture below) and two soils by elevation. The weather is made up,
one station with four years of daily rain and temperature.
import numpy as np
import pandas as pd
import landschaft as ls
ex = ls.hydro.swat.example_landscape()
dem, landuse, soils = ex["dem"], ex["landuse"], ex["soils"]
print(dem.shape, dem.rio.crs, dem.rio.resolution())
print(ex["landuse_lookup"], ex["soil_lookup"])
print(landuse.to_series().value_counts(normalize=True).round(2).to_dict())
(371, 273) EPSG:32610 (30.0, -30.0)
{1: 'FRSD', 2: 'PAST'} {10: 'UPLAND_LOAM', 20: 'VALLEY_CLAY_LOAM'}
{1.0: 0.96, 2.0: 0.04}
The lookups name each code as SWAT+'s databases do: FRSD (deciduous
forest) and PAST (pasture) are rows of its plant database. The soils come
as a table, one row per layer, in the columns of SWAT+'s soils.sol (an
ArcSWAT or QSWAT+ usersoil table works too): depth (mm), bulk density, water
capacity, saturated conductivity (mm/h), clay (%), erodibility...
name hyd_grp dp bd awc soil_k clay usle_k
0 UPLAND_LOAM B 200.0 1.35 0.15 20.0 18.0 0.28
1 UPLAND_LOAM B 700.0 1.45 0.13 12.0 22.0 0.28
2 UPLAND_LOAM B 1500.0 1.55 0.11 6.0 25.0 0.28
3 VALLEY_CLAY_LOAM C 250.0 1.30 0.17 6.0 32.0 0.30
4 VALLEY_CLAY_LOAM C 900.0 1.40 0.15 3.0 36.0 0.30
5 VALLEY_CLAY_LOAM C 1500.0 1.50 0.13 1.5 38.0 0.30
The valley soil conducts water three to four times slower than the upland one, layer for layer: that will matter. The weather has wet winters and dry summers, about 1100 mm a year:
print(ex["pcp"].resample("YE").sum().round(0).T)
print(ex["tmax"].resample("QE").mean().round(1).T.iloc[:, :4])
2001-12-31 2002-12-31 2003-12-31 2004-12-31
valley 985.0 1086.0 1299.0 955.0
2001-03-31 2001-06-30 2001-09-30 2001-12-31
valley 8.2 19.6 23.8 11.9
Dividing the watershed¶
watershed does what QSWAT+ does: it conditions the DEM, finds the streams
draining more than stream_threshold km², splits them into channels at the
junctions, gives each channel its subbasin, and divides every subbasin into
HRUs, the areas of one land use, soil and slope band. With
hru_method="filter" an HRU is kept when its land use, soil and slope band
each cover at least 10 % of the subbasin (the area of the others goes to
them).
w = ls.hydro.swat.watershed(dem, landuse, soils, landuse_lookup=ex["landuse_lookup"],
soil_lookup=ex["soil_lookup"], soil_table=ex["soil_table"],
stream_threshold=1.0, slope_bands=(15, 35),
hru_method="filter", thresholds=(10, 10, 10))
print(w)
hrus = w.tables["gis_hrus"]
print(hrus.groupby(["landuse", "soil"])["arsub"].agg(["count", "sum"]).round(0))
SwatWatershed(33 subbasins, 128 HRUs, 8075.9 ha)
count sum
landuse soil
FRSD UPLAND_LOAM 62 16517.0
VALLEY_CLAY_LOAM 57 15430.0
PAST UPLAND_LOAM 5 540.0
VALLEY_CLAY_LOAM 4 2232.0
The tables are QSWAT+'s (gis_subbasins, gis_channels, gis_hrus,
gis_routing...), and w.subbasins, w.hrus and w.channels are the maps
of the division, on the DEM's grid.
Weather¶
climate writes the weather files of the project and the statistics of the
weather generator, which SWAT+ uses for the days and the variables without
measurements (here radiation, humidity and wind, from the monthly means given):
wx = ls.hydro.swat.climate(ex["stations"], pcp=ex["pcp"], tmax=ex["tmax"], tmin=ex["tmin"],
monthly=ex["monthly"])
print(wx, wx.period())
print(wx.wgn.loc["valley", ["tmp_max_ave", "tmp_min_ave", "pcp_ave", "wet_dry", "wet_wet"]].round(2).head(4))
SwatClimate(1 stations, pcp, tmax, tmin) (Timestamp('2001-01-01 00:00:00'), Timestamp('2004-12-31 00:00:00'))
tmp_max_ave tmp_min_ave pcp_ave wet_dry wet_wet
month
1 5.59 -4.83 151.68 0.78 0.66
2 7.40 -3.06 172.35 0.52 0.61
3 10.59 -0.04 106.60 0.39 0.60
4 15.34 4.85 83.78 0.34 0.43
wet_dry and wet_wet are the chances of rain after a dry and after a wet
day. The half-hour rain intensity (pcp_hhr), which the erosion needs, cannot
come from daily data and is given in monthly.
The project¶
from_tables writes the SWAT+ project from the division and the weather,
file for file as the SWAT+ Editor writes it (its databases of plants, tillage,
fertilizers, its default parameters). The project runs here, and in SWAT+ 62
itself once written to a folder:
project = ls.hydro.swat.from_tables(w, wx)
project.watershed = w # what hru_map and channel_map need
print(project)
print(project.text("time.sim").splitlines()[2])
folder = project.write("my_model/TxtInOut") # runs in SWAT+ 62 itself, too
print(len(list(folder.iterdir())))
ls.hydro.swat.from_rasters does watershed and from_tables in one call,
and load_txtinout reads a TxtInOut folder made by QSWAT+ and the editor (or
load_qswat_project a QSWAT+ database).
Simulating¶
run simulates every day of the period and returns what SWAT+ prints, the
tables of its print.prt, chosen with tables: water (wb), nutrients
(nb), losses (ls) and plants and weather (pw) of each HRU and of the
basin, the channels and the aquifers, by day, month, year or average annual
(aa). The editor's project skips the first year, a warm-up for the soil
water and the aquifers:
result = ls.hydro.swat.run(project, tables={"basin_wb": ["year", "aa"], "hru_wb": "aa",
"hru_ls": "aa", "channel_sd": "day"})
print(result)
cols = ["precip", "snofall", "et", "surq_gen", "latq", "perc", "wateryld"]
print(result.table("basin_wb", "year")[cols].astype(float).round(1))
SwatResult(1461 days, tables: hru_wb[aa], hru_nb[year/aa], hru_ls[aa], hru_pw[year/aa], basin_wb[year/aa], basin_nb[year/aa], basin_ls[year/aa], basin_pw[year/aa], channel_sd[day], aquifer[year/aa])
precip snofall et surq_gen latq perc wateryld
date
2002-12-31 1085.9 336.6 514.1 243.6 21.6 306.6 265.2
2003-12-31 1299.0 202.5 500.9 292.8 24.4 369.0 317.2
2004-12-31 955.0 257.1 502.9 192.0 20.0 274.9 212.0
All in mm over the basin: rain and snow, evapotranspiration, surface runoff, lateral flow in the soil, percolation below the soil to the aquifers, and the water yield, what leaves the land surface for the channels the same day. Averaged over the three printed years:
aa = result.table("basin_wb", "aa")[cols].astype(float).iloc[0]
print(aa.round(1).to_dict())
print(round(aa["et"] / aa["precip"], 2), round((aa["surq_gen"] + aa["latq"]) / aa["precip"], 2))
{'precip': 1108.2, 'snofall': 264.2, 'et': 503.6, 'surq_gen': 241.7, 'latq': 21.9, 'perc': 315.4, 'wateryld': 263.6}
0.45 0.24
45 % of the rain goes back to the air and 24 % runs off at once; the rest percolates and reaches the channels later through the aquifers. Where it runs off depends on the soil much more than on the vegetation:
hru_wb = result.table("hru_wb", "aa").droplevel("date")
by = pd.DataFrame({"landuse": hrus["landuse"].values, "soil": hrus["soil"].values,
"surq_gen": hru_wb["surq_gen"].values, "latq": hru_wb["latq"].values,
"perc": hru_wb["perc"].values, "et": hru_wb["et"].values})
print(by.groupby(["landuse", "soil"]).mean().round(0))
surq_gen latq perc et
landuse soil
FRSD UPLAND_LOAM 3.0 24.0 629.0 432.0
VALLEY_CLAY_LOAM 443.0 16.0 56.0 562.0
PAST UPLAND_LOAM 10.0 22.0 599.0 458.0
VALLEY_CLAY_LOAM 412.0 20.0 56.0 593.0
On the upland loam nearly all the water that is not evaporated percolates; the valley clay loam passes 56 mm a year below the root zone, fills, and sheds some 430 mm over the surface.
Streamflow¶

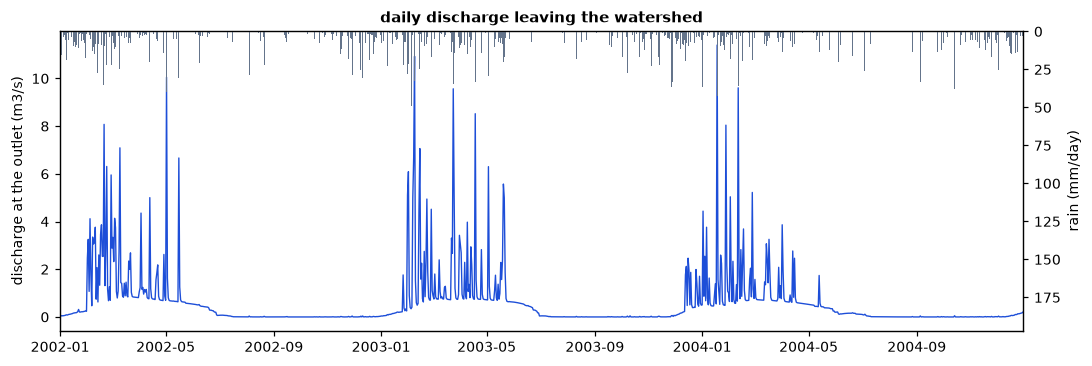

reach_discharge gives the daily discharge leaving each channel (m3/s); the
outlet is the channel with the most water:
q = ls.hydro.swat.reach_discharge(project, result=result)
outlet = int(q.mean().idxmax())
flow = q[outlet]
print(outlet, round(float(flow.mean()), 2), round(float(flow.max()), 1), flow.idxmax().date())
monthly = flow.groupby(flow.index.month).mean().astype(float).round(2)
print(monthly.to_dict())
33 0.61 11.4 2004-01-18
{1: 0.76, 2: 2.33, 3: 1.48, 4: 1.27, 5: 1.03, 6: 0.32, 7: 0.03, 8: 0.0, 9: 0.0, 10: 0.0, 11: 0.01, 12: 0.26}
The river runs from January to June and dries in the summer. Its baseflow
comes from the shallow aquifers, which the editor sets up to release water
only while their water table is above 3 m (flo_min in aquifer.aqu): the
dry summer stops the recharge, the water table sinks below that depth and the
baseflow stops until the winter rains raise it again. Aquifer parameters, like
every other, are edited in the project's files (project.text,
project.set_text) before running.
Soil loss¶
SWAT+ computes the soil loss of each HRU and day with the modified universal
soil loss equation (MUSLE): from the runoff and its peak rate, the soil's
erodibility, the slope and its length, and a cover factor C, the protection
the vegetation and the litter give. SWAT+ 62 takes C from the cover of the
residue times the cover of the growing biomass, a method of the APEX model in
which a tall canopy hardly protects the soil (drops fall from high), so that a
forest is protected only by its litter. c_factor="plant" takes SWAT+'s
earlier method instead, the minimum C of each plant in its database (0.001
for a forest, 0.005 for a pasture), raised as the cover thins:
swatplus = result.table("hru_ls", "aa")["sedyld"].droplevel("date")
plant = ls.hydro.swat.run(project, tables={"hru_ls": "aa"}, c_factor="plant")
classic = plant.table("hru_ls", "aa")["sedyld"].droplevel("date")
loss = pd.DataFrame({"landuse": hrus["landuse"].values, "soil": hrus["soil"].values,
"swatplus": swatplus.values, "plant": classic.values})
print(loss.groupby(["landuse", "soil"])[["swatplus", "plant"]].mean().astype(float).round(2))
swatplus plant
landuse soil
FRSD UPLAND_LOAM 3.23 0.00
VALLEY_CLAY_LOAM 580.97 0.78
PAST UPLAND_LOAM 2.43 0.20
VALLEY_CLAY_LOAM 158.52 7.91
The two methods agree on where the soil is lost, on the runoff of the valley soil, but not on how much: with SWAT+ 62's factor the litter of these forests (about 1 t/ha in the model) leaves a C of 0.6 to 0.7, and the forests lose more soil than the pastures. Water, plants and nutrients in the soil are the same with both; only the sediment and what travels with it change. The results of either method are SWAT+'s with that method.

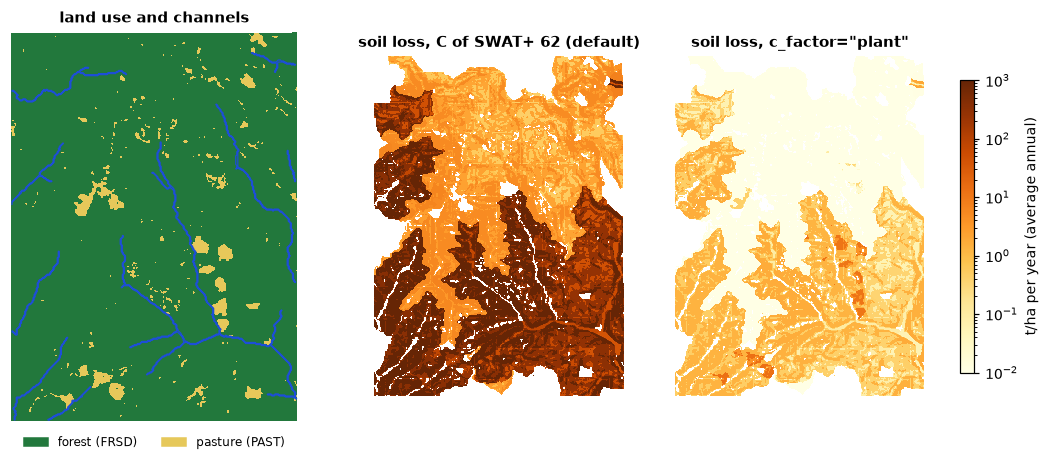

erosion = ls.hydro.swat.hru_map(project, "sedyld", result=plant) # t/ha per year
print(erosion.shape, round(float(erosion.mean()), 2), round(float(erosion.quantile(0.95)), 2))
hru_map paints each cell with the value of its HRU (here the average annual
loss, t/ha), NaN outside the watershed and on the cells of HRUs folded into
others; channel_map does the same for the channels on the stream cells.
A land use scenario¶
What if the forests of the valleys were cleared for pasture? A scenario is
another land use map through the same steps; run_many simulates several
projects at once, one per thread:
cleared = landuse.where(~((landuse == 1) & (soils == 20)), 2) # the valley forests become pasture
print(cleared.to_series().value_counts(normalize=True).round(2).to_dict())
scenario = ls.hydro.swat.from_rasters(dem, cleared, soils, landuse_lookup=ex["landuse_lookup"],
soil_lookup=ex["soil_lookup"], soil_table=ex["soil_table"],
climate=wx, stream_threshold=1.0, slope_bands=(15, 35),
hru_method="filter", thresholds=(10, 10, 10))
now, then = ls.hydro.swat.run_many([project, scenario],
tables={"basin_wb": "aa", "basin_ls": "aa"}, c_factor="plant")
for name, r in (("today", now), ("valleys cleared", then)):
wb = r.table("basin_wb", "aa").iloc[0]
sed = r.table("basin_ls", "aa").iloc[0]
print(name, round(float(wb["surq_gen"]), 1), round(float(wb["wateryld"]), 1), round(float(wb["et"]), 1),
round(float(sed["sedyld"]), 3))
Pasture on half of the watershed changes the water little, a little less
runoff and more evapotranspiration, but the basin's soil loss grows six times,
from 0.62 to 3.71 t/ha a year. Maps like hru_map(..., "sedyld") of such
scenarios are the costs and benefits a restoration plan weighs (see
Restoration priorities).
Projects from elsewhere¶
A model made with QSWAT+ and the SWAT+ Editor runs as it is, from its TxtInOut folder (or a zip of it). The package carries one of the official examples of SWAT+, the forested Hubbard Brook watershed:
hb = ls.hydro.swat.load_txtinout(ls.example_data("swat_hubbard_brook"))
res = ls.hydro.swat.run(hb, tables={"hru_wb": "year"}, nyskip=1)
print(res.table("hru_wb", "year")[["precip", "snofall", "snomlt", "et", "wateryld"]].astype(float).round(0).head(3))
precip snofall snomlt et wateryld
date hru
2001-12-31 1 1004.0 311.0 336.0 333.0 323.0
2 1004.0 311.0 336.0 333.0 328.0
3 1004.0 311.0 336.0 333.0 332.0
Files written for SWAT+ before version 62 can differ in meaning: in the
official examples the fifth value of parameters.bsn, which SWAT+ 62 reads as
the peak rate factor (484), is 1, and SWAT+ then computes peak rates and
erosion hundreds of times too low without a word. run warns
(SwatProjectWarning) when it sees one; the packaged example has 484.
What the port does not simulate (reservoirs, wetlands and rice paddies, pesticides, salts, other constituents, the CENTURY carbon model, water allocation, Green-Ampt infiltration, sub-daily steps) is refused with a clear error when a project uses it, rather than silently skipped.
